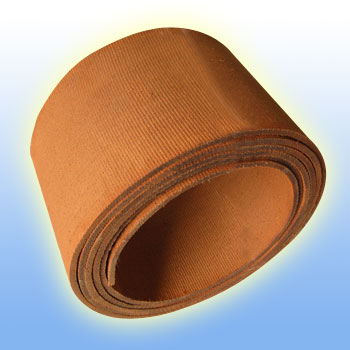

Non asbestos woven brake lining with resin(BXS-O)
We select new type non asbestos yarn which contains brass wire, viscose fiber, glass fiber, aramid fiber act. The yarns are woven by the advanced loom machinery, used specially developed and produced macromolecule resin, through high temperature, low temperature workmanship. The product has high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. the products are pollution free and environmental.
Performance of BXS-O
| Temperature |
Coefficient of friction(μ) |
Wear rate(v)cm3/N.m |
100℃ |
0.40--0.65 |
≤0.7 x 10-7 |
150℃ |
0.35--0.65 |
≤0.9 x 10-7 |
200℃ |
0.32--0.60 |
≤1.1 x 10-7 |
Product Description
Non-asbestos woven brake lining with resin (Brass wire inside)
Thickness: 5-30mm
Width: Max. 500mm
Length: 10m/Roll, 15m/Roll, 20m/Roll.
Color: Orange
Package: opp bag and woven bag
Used for Marine Windlass and winch etc.
|
